Field Monitor 15,4 inch High Brightness HDR – 1500 nits

The IPS Black Technology: With more than 60% increase on contrast ratio compare to normal IPS, this newest technology provides superior contrast, crisp image with rich black details, improve the color accuracy in off-axis view angle.

• Deeper Blacks
• Off-Axis Superiority
• Color Accuracy
• Gray Level Accuracy

Brightness Enhancement Film: With this film, 1500 nits brightness is realized. More light can be transmitted through the LCD, increasing on-axis illuminance by up to 60% for a slab backlight.

Anti-Reflective Coating: AR coating offers superior visibility and reduces reglection further by bending light through objects.

True 10-Bits Color Depth: Great color depth displays pictures with lovely color and tone rendition for your client.

Differentiate Your Creation with Color: Up to 10 USER 3D LUTs can be loaded. Monitoring the shooting with your special color profile.

Precise Color & Tone Reproduction: 22-bit image engine and tetrahedral 3D-LUT interpolation support HLG/PQ HDR, and various camera logs. Achieve the perfect visual effect in nearly any environment.

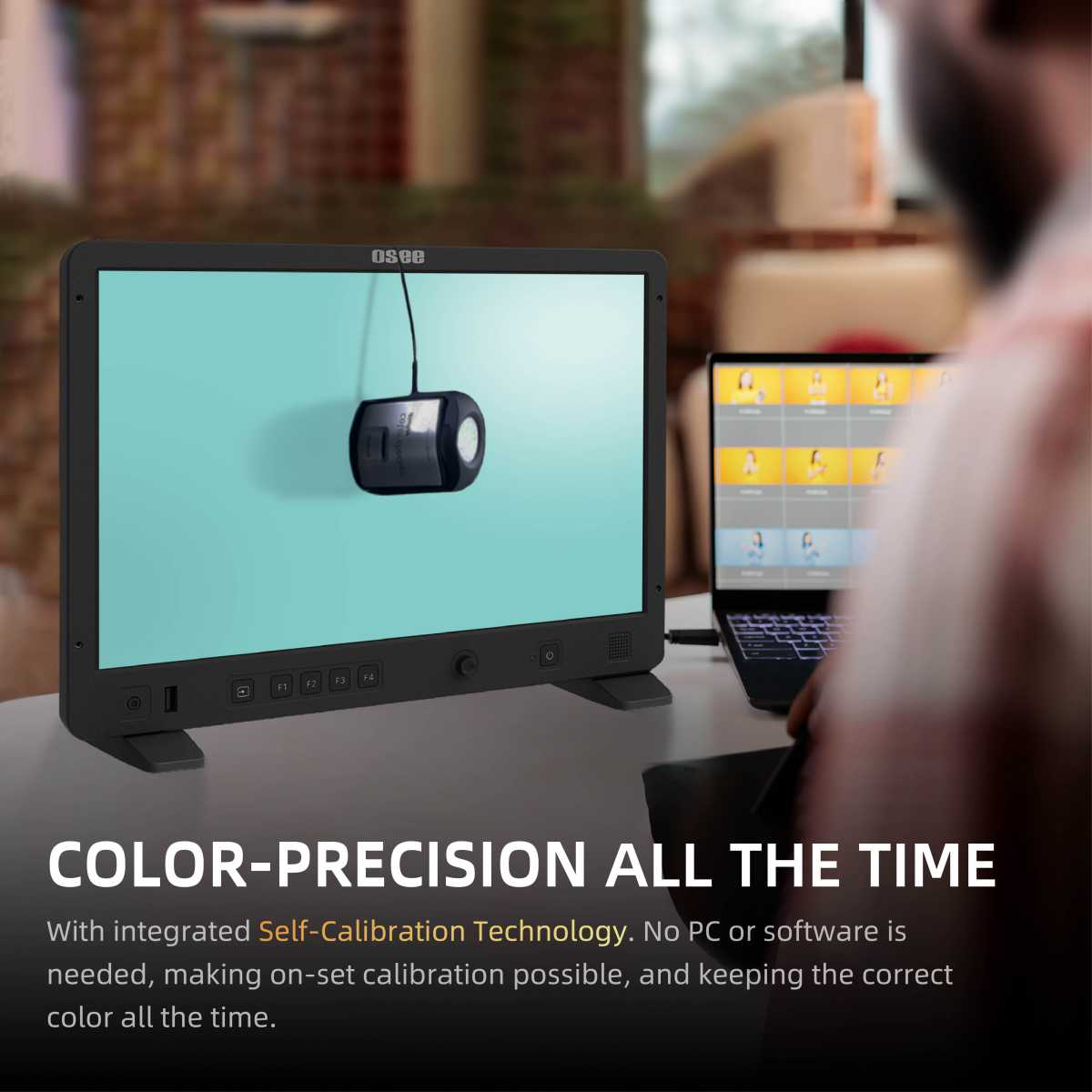

Built-in Color Calibration Technology: Integrated calibration for excellent color reproduction, keeping the color true to life.

Rotary Encoder: Combines push, four directional, and rotation control into a single knob, making the UI navigation ad adjustments faster.

Two installation positions: Available for VESA adapter and C-stand. Choose the installation method that suits you best.

Cheese plate positions: There are 8 cheese plate installation positions, 4 on the back and 2 on each side.

Battery plate positions: Provides 2 battery installation positions, no longer conflicting with the VESA adapter.

Essential signal interfaces: Simple and practical interface configuration to realize pure digital monitoring.

Monitor Body

Display

Panel Size: 15.4 inches

Resolution: 1920X1200

Color bit Depth: 10 bits

Brightness: 1500 nits

Contrast: 1650:1

Data I/O

SDI Format:

2K (2048×1080): 23.98/24/25/29.97/30/50/59.94/60P, 23.98/24/25/29.97/30Psf

HD (1920×1080): 23.98/24/25/29.97/30/50/59.94/60P, 50/59.94/60I

HD (1280×720): 50/59.94/60P

HDMI Format:

4K (4096×2160): 23.98/24/25/29.97/30P

UHD (3840×2160): 23.98/24/25/29.97/30P

2K (2048×1080): 23.98/24/25/50

HD (1920×1080): 23.98/24/25/29.97/30/50/59.94/60P, 50/59.94/60I

HD (1280×720): 50/59.94/60P

Video IO: SDI In x2, SDI Out x2, HDMI In x1

Other IO: USB Type-A x1: 3D-LUT upload, firmware upgrade USB Type-C x1: internal color calibration via x-rite i1 display pro 3.5mm mini Jack: ear phone

3D-LUT, Camera Log

3D-LUT: 10 User 3D LUTs

Camera Log: Standard Log: 2.2, 2.4, HLG, PQ; ARRI Log C; BMD Film,4K Film,4.6K Film; Canon C Log,C Log2, C Log3; Fuji F-LOG; Nikon N-LOG; Panasonic V-LOG; RED Log3G12, Lgo3G10, RedLogfilm; Sony S-Log, S-Log 2, S-Log 3; DCI 2.6

Framing Tools: Aspect, Safe, Center, Crosshatch, Anamorphic

Exposure Tools: False Color, Zebra, Waveform, Vector, Histogram

Focus Tools: Focus Assist, Peaking

Other Tools: DE-LOG, MULTI-SCOPES, Display Rotate, Audio Meter (Only SDI), Time Code (Only SDI)

Power

Power Supply: 100-240V (50/60Hz) AC / 11~17V/3A (XLR Pin4)

Power Consumption: 22W

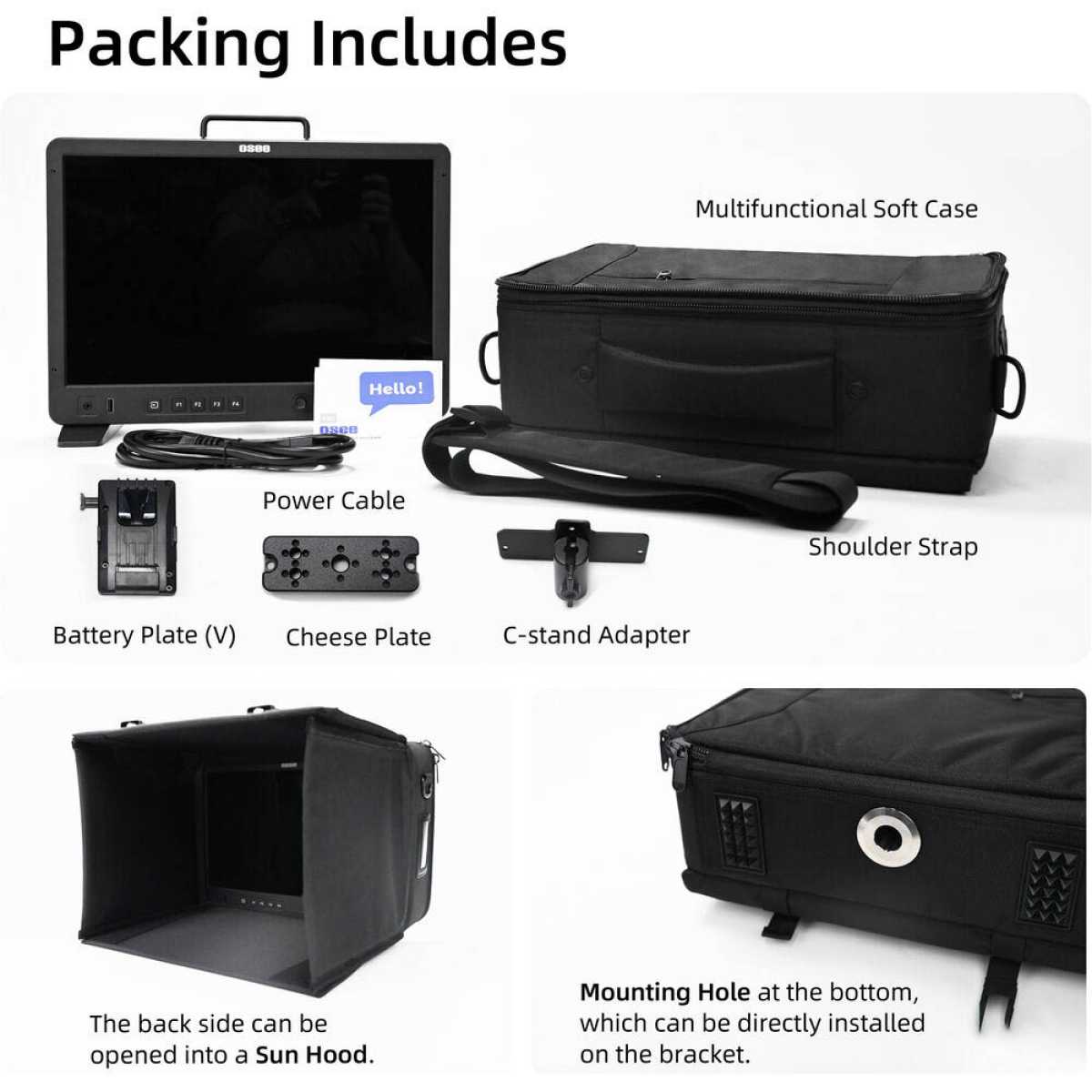

What’s in the Box: Mega 15S, portable soft case(Sun hood), battery plate (V or AB), c-stand adapter, power cable, cheese plate.
