Field Monitor 21,5 inch High Brightness HDR – 1500 nits

10 bit IPS Panel. Greater color depth provides creative freedom and displays the pictures for your client.

Precise color and tone reproduction. 22-bit image engine and tetrahedral 3D-LUT interpolation support HLG/PO HDR, and various camera logs.

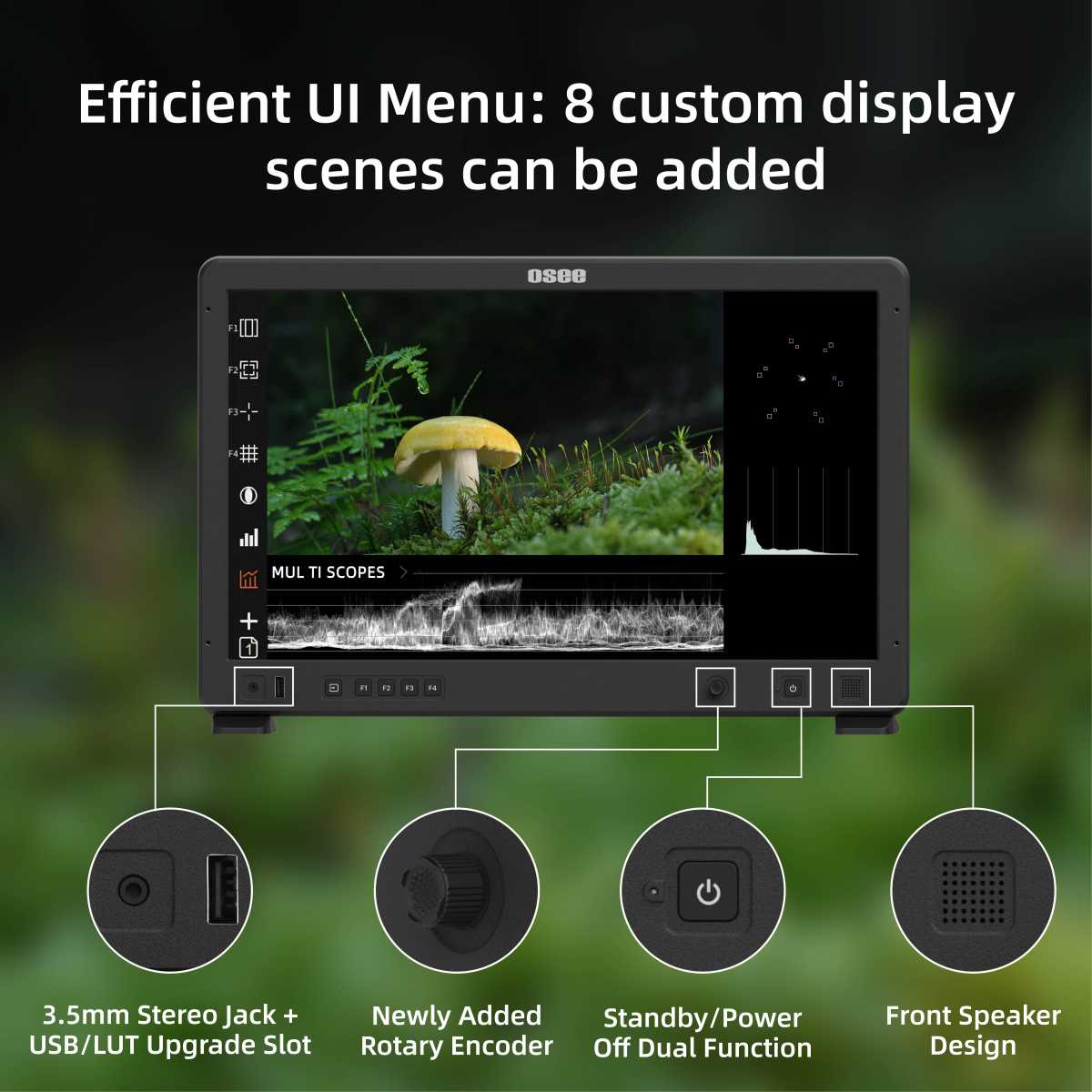

Quick and convenient UI settings. Up to 10 USER 3D LUTS can be loaded into the monitor menu. You can add your favorite color profile via USB and easily display different effects.

Various professional scene tools. Aspect, Safe, Center, Crosshatch, Anamorphic, False color, Zebra, Waveform, Vector, Histogram, Focus assisr, Peaking, De-LOg, Multi-scopes, Audio meter, Time Code

Simple & essential signal and power connection interface.

Designed for on-set monitoring. With built-in calibrate Display Color Technology, match the display to real-life colors.

Monitor Body

Display

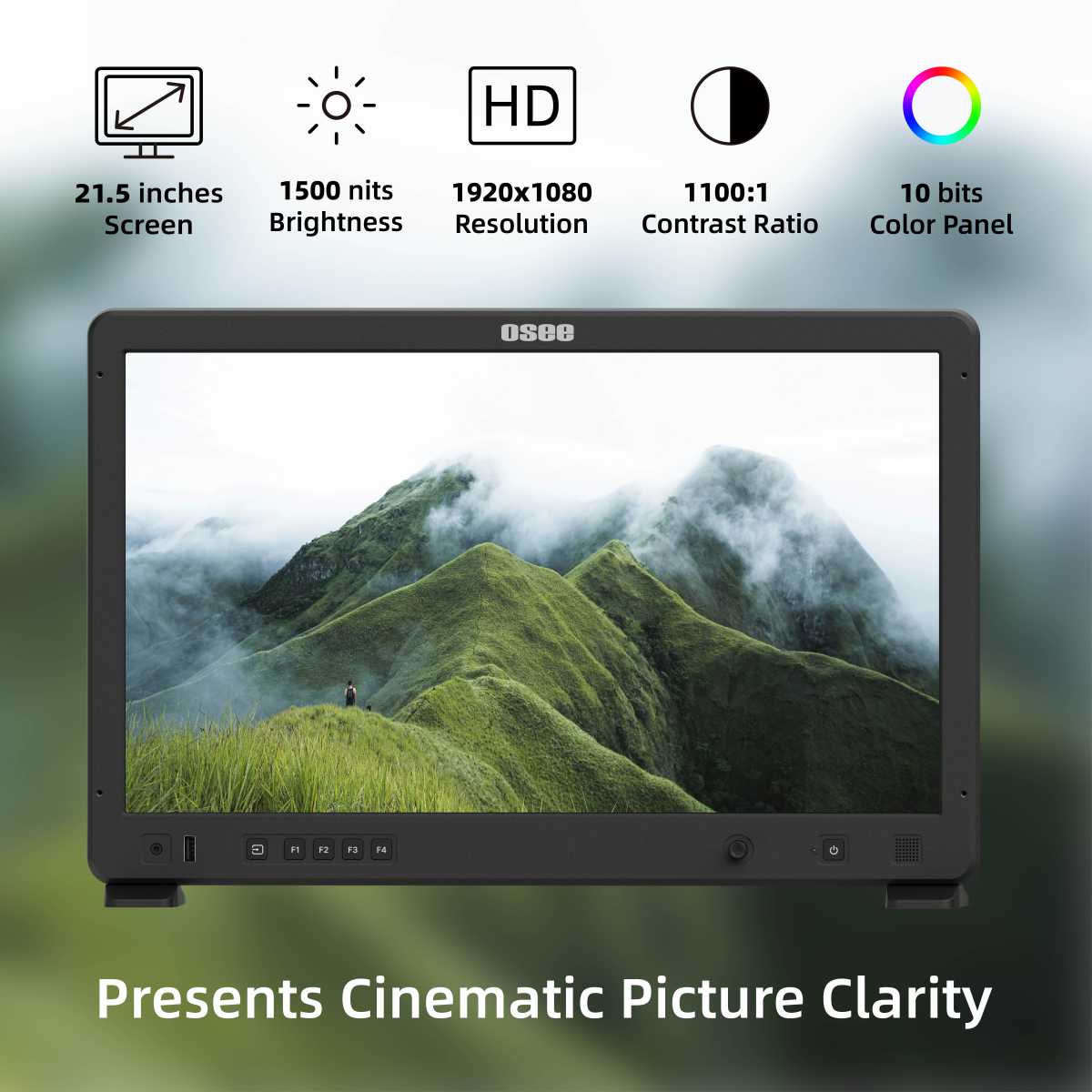

Panel Size: 21.5inch

Resolution: 1920X1080

Brightness: 1500nits

Contrast: 1100:1

Color bit Depth: 10 bits

Data I/O

SDI Format:

• 2K (2048×1080): 23.98/24/25/29.97/30/50/59.94/60P, 23.98/24/25/29.97/30Psf
• HD (1920×1080): 23.98/24/25/29.97/30/50/59.94/60P, 50/59.94/60I
• HD (1280×720): 50/59.94/60P

HDMI Format:

• 4K (4096×2160): 23.98/24/25/29.97/30P
• UHD (3840×2160): 23.98/24/25/29.97/30P
• 2K (2048×1080): 23.98/24/25/50
• HD (1920×1080): 23.98/24/25/29.97/30/50/59.94/60P, 50/59.94/60I
• HD (1280×720): 50/59.94/60P

Video IO: 2x3G/HD/SD-SDI signal inputs/outputs, 1x4K@30HDMI input

Other IO:

• USB Type-A x1: 3D-LUT upload, firmware upgrade
• USB Type-C x1: internal color calibration via x-rite i1 display pro
• 3.5mm mini Jack: ear phone

3D-LUT, Camera Log:

• 3D-LUT: 10 User 3D LUTs
• Standard Log: 2.2, 2.4, HLG, PQ; ARRI Log C; BMD Film,4K Film,4.6K Film; Canon C Log,C Log2, C Log3; Fuji F-LOG; Nikon N-LOG; Panasonic V-LOG; RED Log3G12, Lgo3G10, RedLogfilm; Sony S-Log, S-Log 2, S-Log 3; DCI 2.6

Framing Tools: Aspect; Safe; Center; Crosshatch; Anamorphic

Exposure Tools: False Color; Zebra; Waveform; Vector; Histogram

Focus Tools: Focus Assist; Peaking

Other Tools: DE-LOG; MULTI-SCOPES; Display Rotate; Audio Meter (Only SDI); Time Code (Only SDI)

Power:

Power Supply: 100-240V (50/60Hz) AC / 11~17V/5A (XLR Pin4)

Power Consumption: 46W

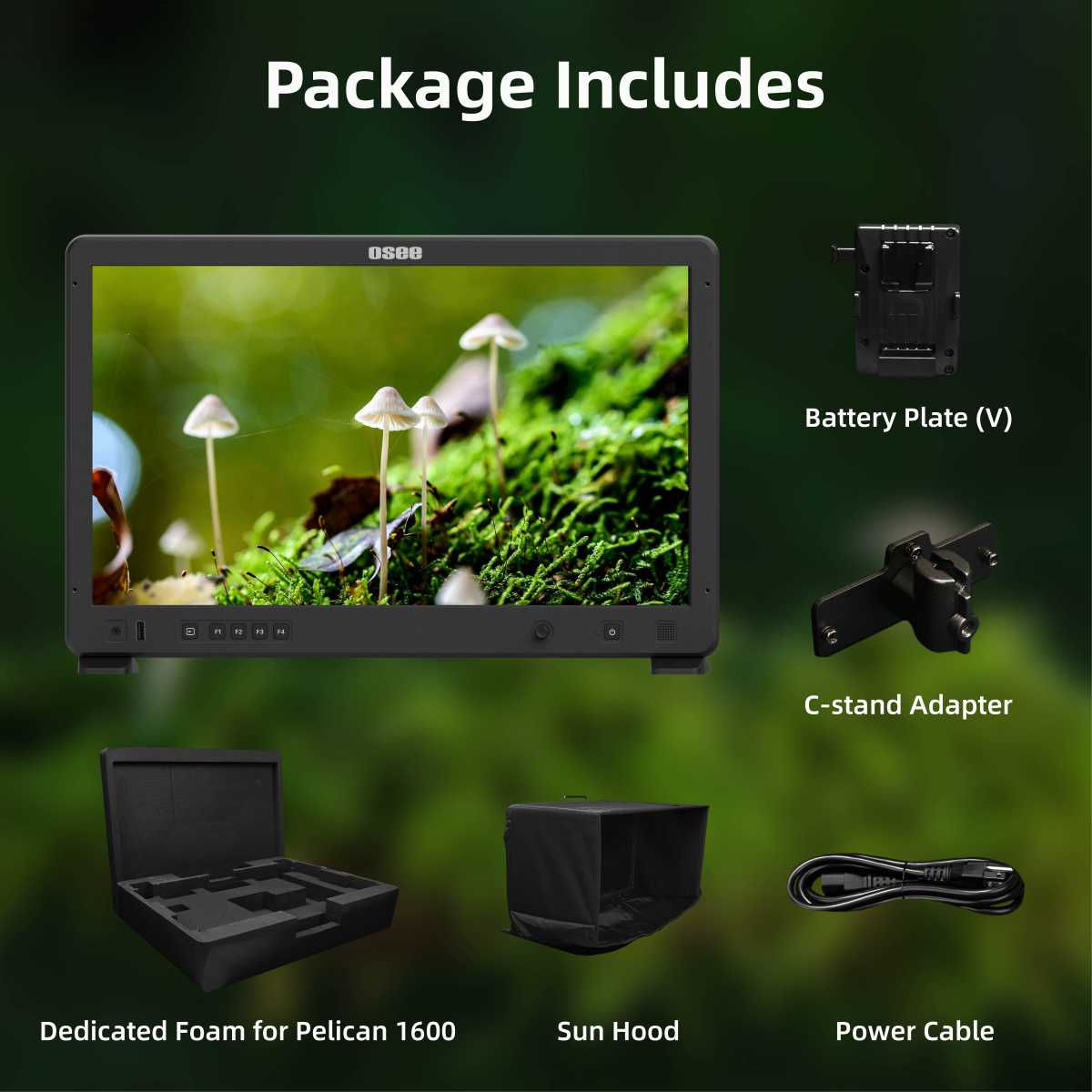

What’s in the Box: Mega 22S, dedicated foam for Pelican 1600, sun hood, battery plate (V or AB), C-stand adapter, power cable, cheese plate
