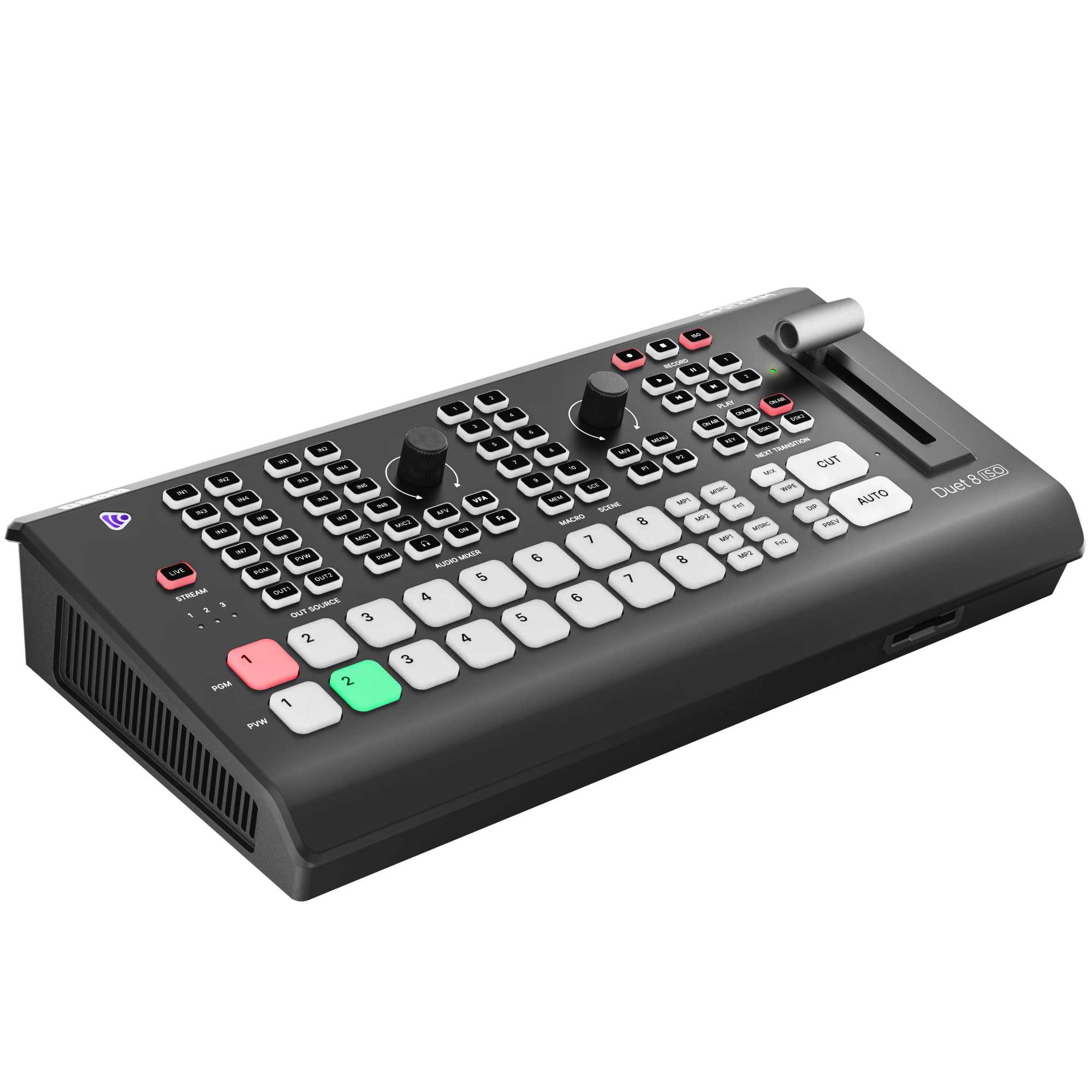

GoStream Duet 8 ISO: 8 Channels Video Switcher | 4K-HDMI, SDI, NDI HX/SRT/RTMP/Webcam

De OSEE GoStream Duet 8 ISO is een 8 kanaals mixer met geavanceerde functionaliteit. De mixer biedt ondersteuning voor 3G SDI, 4K HDMI, USB 3.0 webcams, NDI HX, SD/SSD playback, SRT en RTMP. Ook webbrowser input of PNG afbeeldingen worden ondersteund.

Door de vele ingangen kunnen alle apparaten tegenlijk aangesloten worden, zonder gebruik te maken van adapters. De Duet 8 ISO biedt daarnaast ook ondersteuning voor 2 XLR microfoons met ingebouwde 48v fantoomvoeding en een studiokwaliteit voorversterker.

Specificaties

• Inputs: 8 video inputs, kanaal 1-4: 4K HDMI/ 3G-SDI met automatische detectie, kanaal 5&6: NDI HX/ SRT, RTMP, video playback, kanaal 7&8: NDI HX/ SRT, RTMP, USB-webcam
• 4 Video outputs:
• Recording: PGM en 8 kanaals ISO – MP4 H.264 opname
• Afspelen: 2 ingebouwde MP4 videospelers voor H.264 playback

8 Video Input Channels

8 Channel from: Simultaneously 4x HDMI, 4x SDI, also support 4x NDI HX, 4x SRT, 4xRTMP, 2x Webcam & 2x MP4 Player Inputs

4 Video Outputs

HDMI OUT 1-2, SDI 1: monitor MultiView, video input channels, PVW or PGM. USB 3.0: UVC webcam Output up to 1080p60

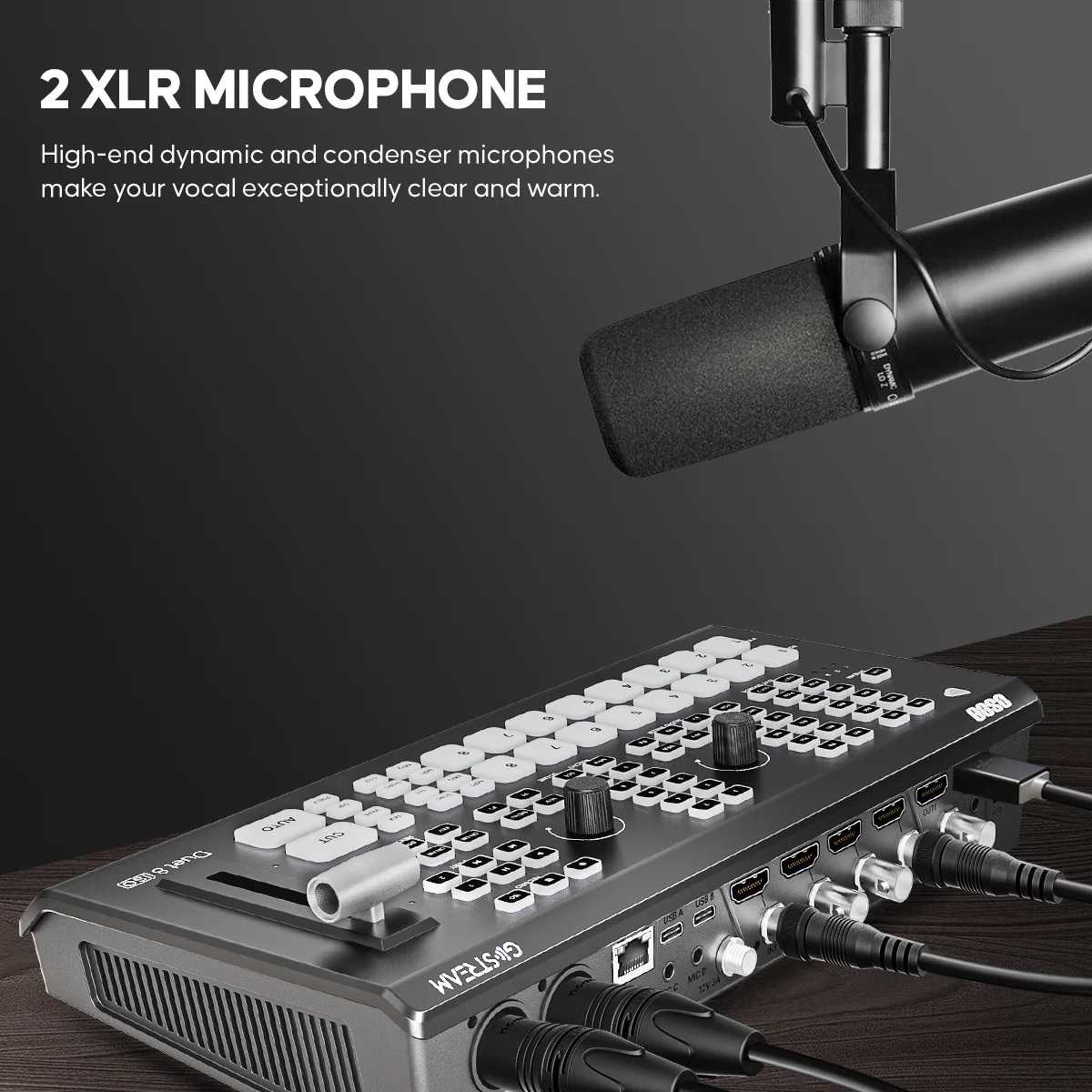

2 Audio Inputs/ Output

2 XLR or 3.5mm inputs. 3.5mm for line, XLR for dynamic microphone, and condenser microphone.

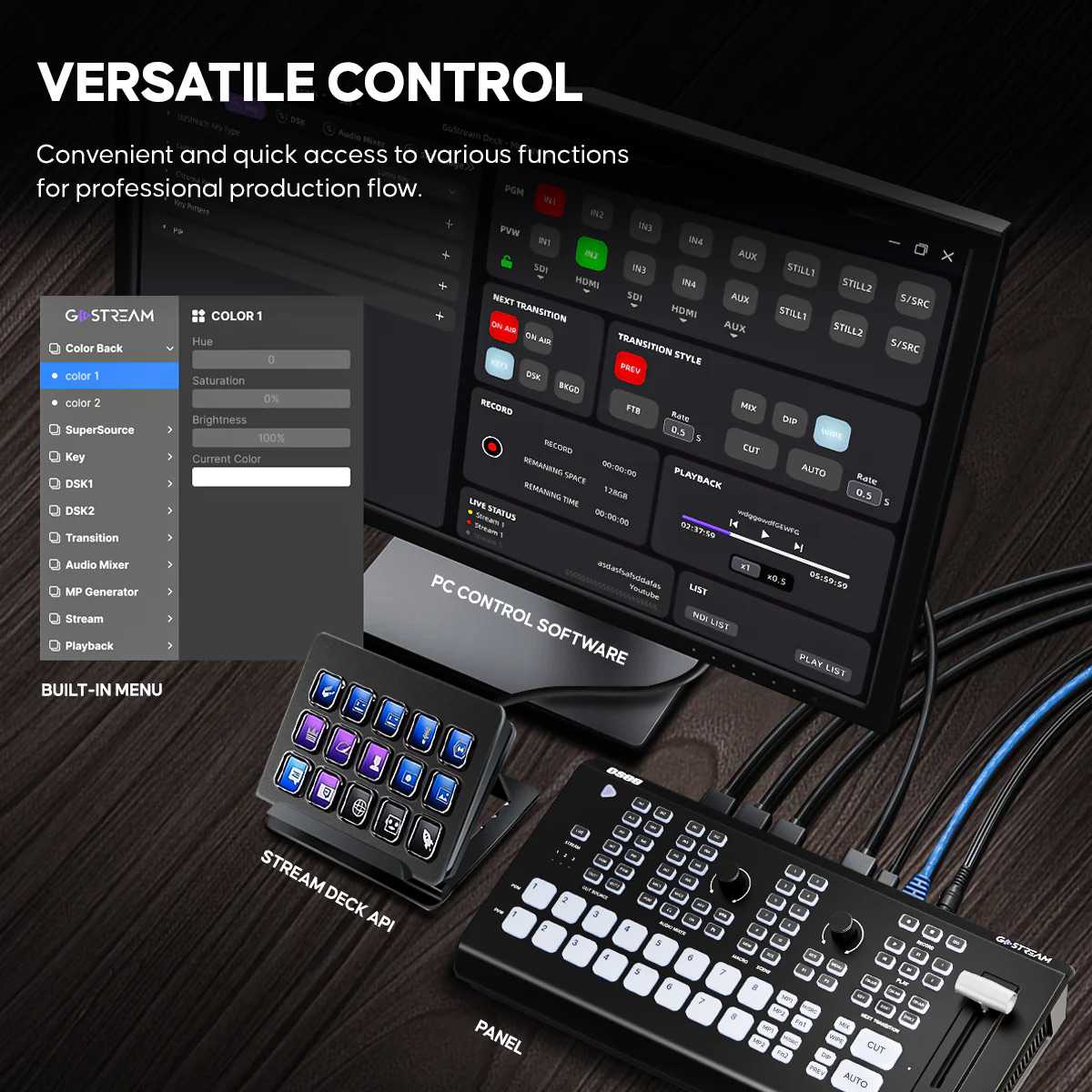

Control

Built-In menu, Panel, Free PC software, Companion(Stream Deck), Video follows audio (Auto-switching)

Direct Streaming

Ethernet: 3 platforms simultaneous streaming, RTMP, up to 10Mb/s

Audio Mixer

On/Off/AFV control, fader gain, delay, preamp, Low Cut(High-pass filter), Noise Gate, Compressor, Limiter, Euqalizer control; Audio meter display

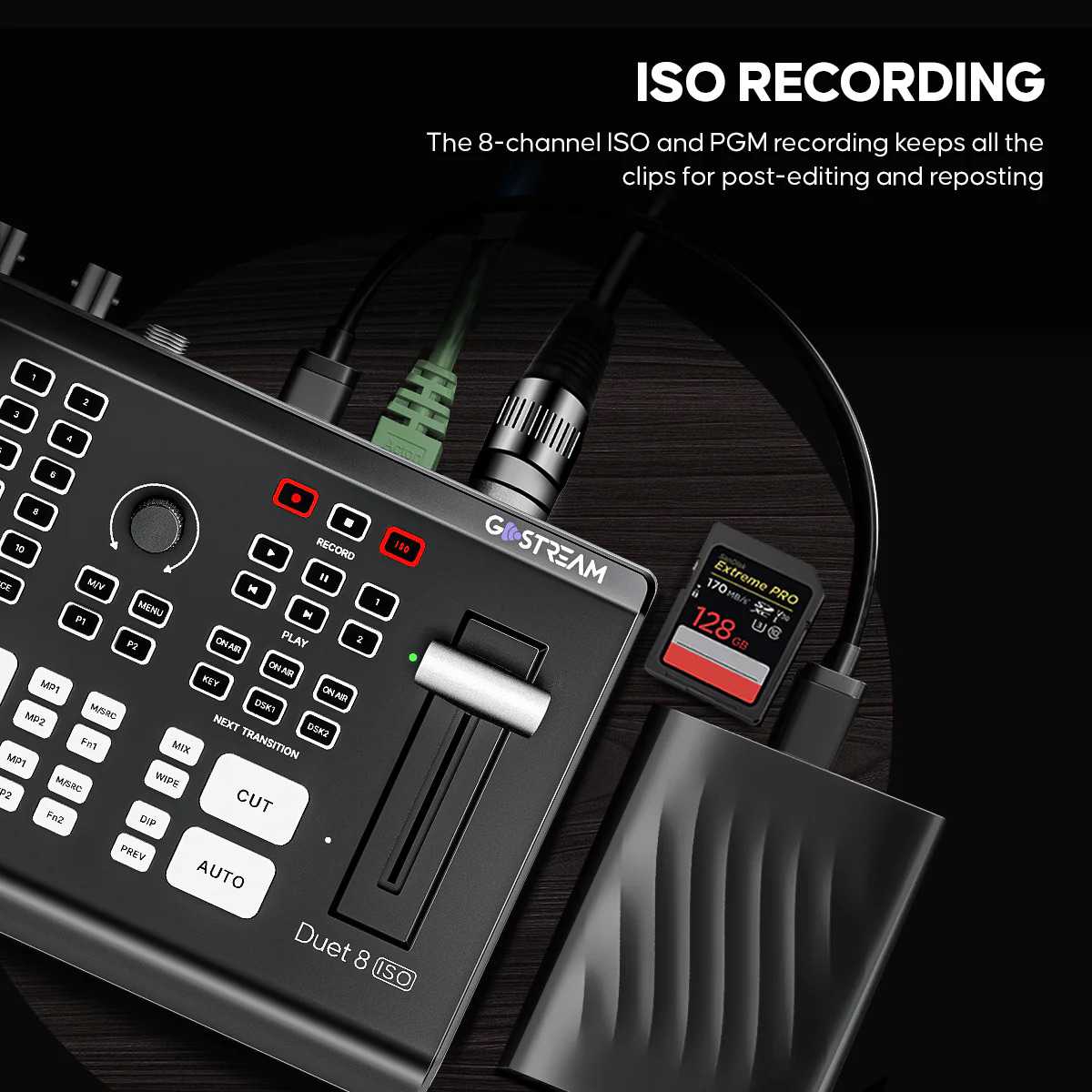

Recording and Playback

Isolated(ISO) and PGM recording and 2 player to playback high-quality videos up to 70Mb/s. Internal SD card slot or external USB 3.0 SSD is supported. Each recording session limited to 5 hours.

HDMI Input format

720p 24(23.98), 720p25, 720p30(29.97), 720p50, 720p60(59.94) 108050, 1080160(59.94) 1080p24(23.98), 1080p25, 1080p30(29.97), 1080p50, 1080p60(59.94) 2160p24(23.98), 2160p25, 2160p30(29.97), 2160p50,2160p60(59.94)

SDI Input format

720p24(23.98), 720p25, 720p30(29.97), 720p50, 720p60(59.94) 1080i50, 1080i60(59.94) 1080p24(23.98), 1080p25, 1080p30(29.97), 1080p50, 1080p60(59.94)

USB Input format

YUV422: 1080p24(23.98), 1080p25, 1080p30(29.97), 1080p50, 1080p60(59.94)

HDMI/SDI Output format

1080p24(23.98), 1080p25, 1080p30(29.97), 1080p50, 1080p60(59.94)

USB Output format

Up to 1080P60

Streaming Output format

1080p24(23.98), 1080p25, 1080p30(29.97), 1080p50, 1080p60(59.94)

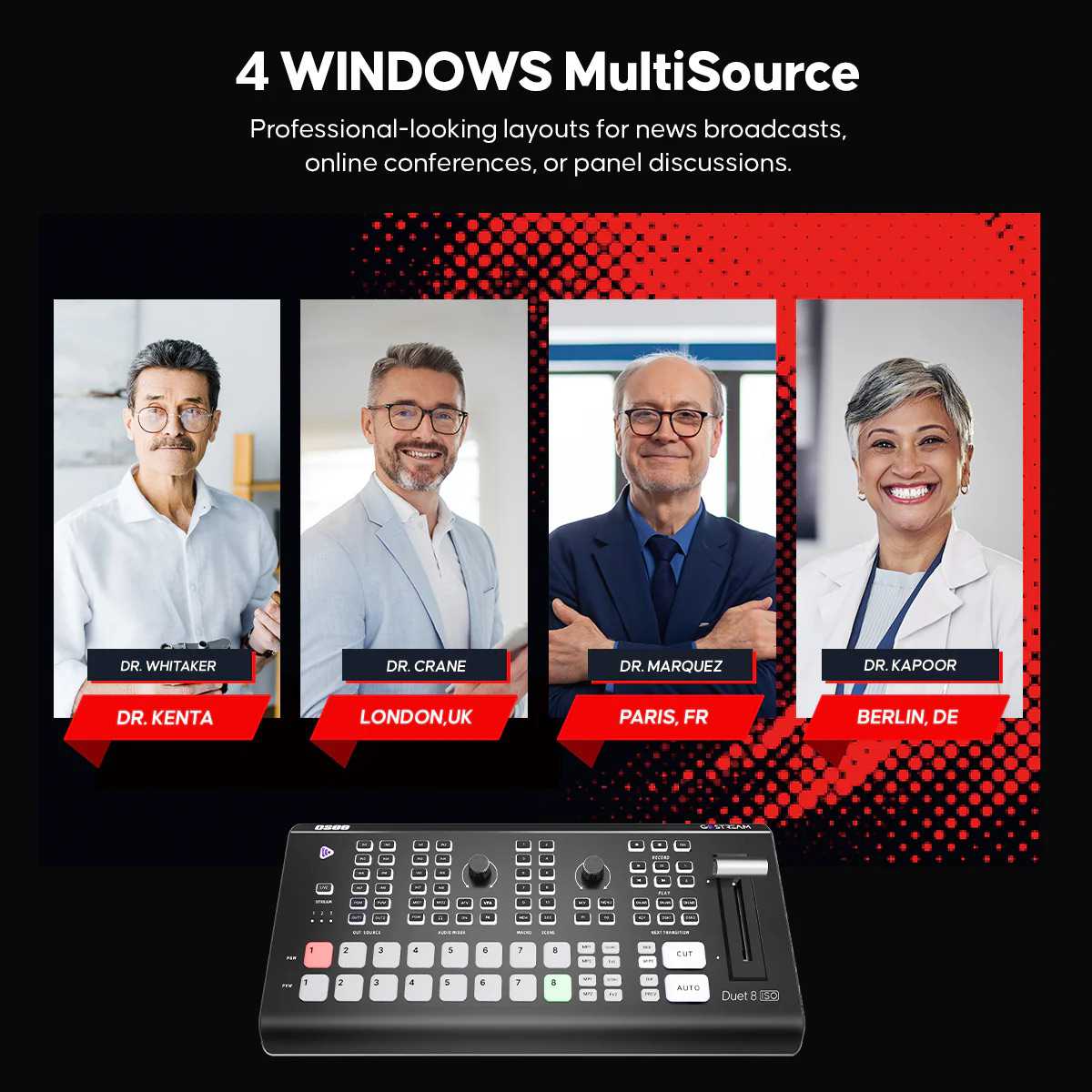

8 Video Layout

1 Graphic Background/Foreground) + 4 windows MultiSource + 1 UpStream Key(Chroam, PIP, Luma, Pattern) + 2 DSK

MP(Media Player)

2 MediaPlayers support 32 stil images poll. Support web browser input for LOGO, lower-third or other animated dynamic alpha channel source. Note: Some Browser Source may display wrong font because there’s no embedded font sources.

Physical

Size: 279.3*142.9*57.4mm; Item Weight: 860g; Shipping Weight: 1340g; Power: 12V 3A; Working Temperature: 5°C to 40°C (41°F~104°F)
