Multicamera live streaming switcher HDMI

All In One – Your Ultimate Live Stream Device

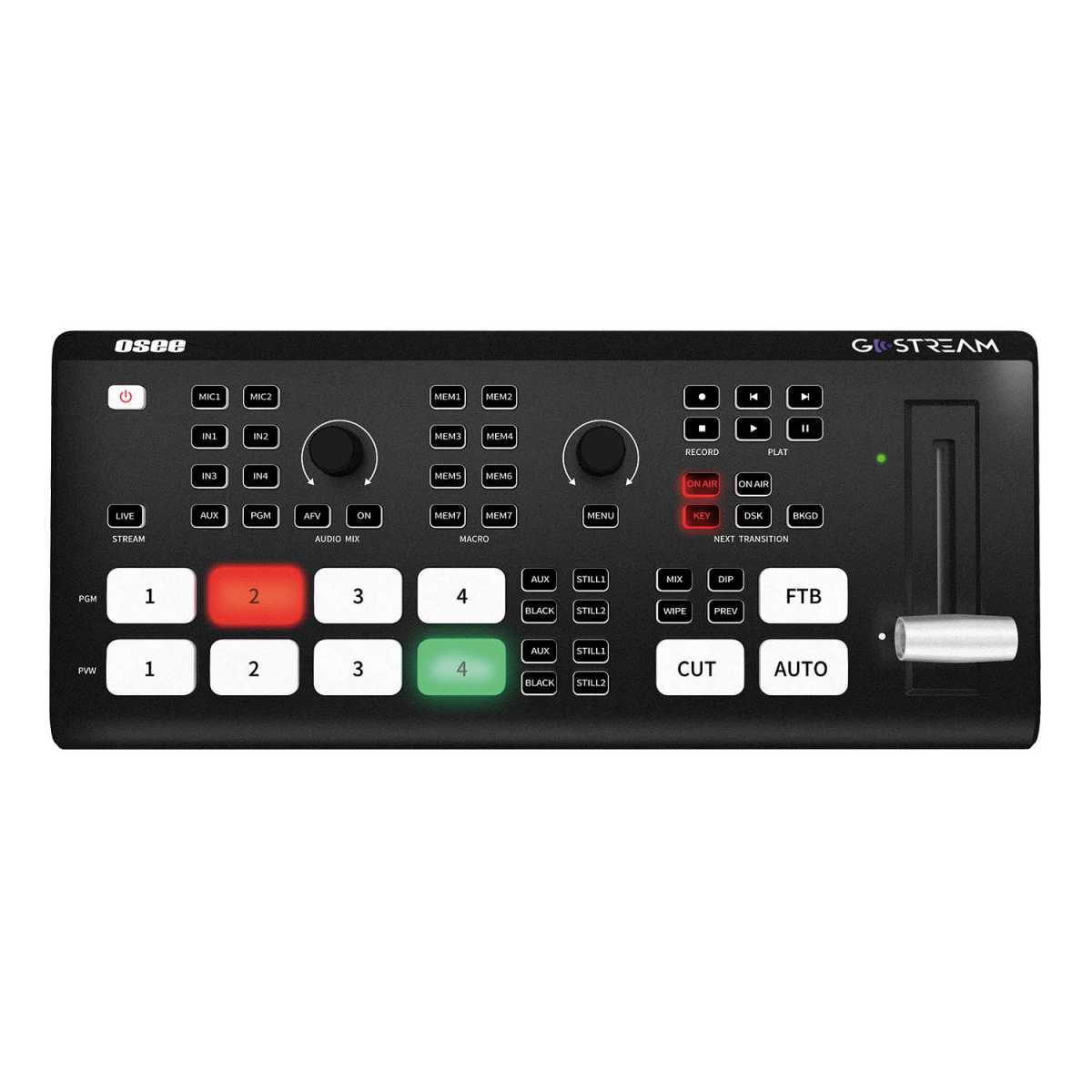

Osee’s GoStream Deck seamlessly integrates powerful functions into a compact device. It features a full functional production switcher, a multiview, a standard audio mixer, a direct-to-web stream engine, a video recorder, a video player, and built-in comprehensive controls. Connecting GoStream Deck to a portable monitor for multiview and to a number of HDMI or UVC cameras allows you to effortlessly set up a live stream event like a seasoned professional.

Streamline Your Setup To The Simplest

With its fully-featured control panel, built-in user interface, SD card recording and player function, no separate PC, external hard disc, or additional player is required, minimizing the number of equipment used during live events. This speeds up your setup, saves precious space on location, and greatly improves reliability in the field.

Stream To 3 Destinations Simultaneously

Equipped with 2 USB ports, GoStream Deck conveniently accommodates one for USB camera connectivity and the other for streaming software like OBS, Vmix, and Zoom. Additionally, the Ethernet port enables you to directly stream to three destinations simultaneously, offering exceptional streaming versatility.

Built-in Comprehensive Audio Mixer

The audio mixer is equipped to handle 7 audio inputs, with 2 from mic inputs, 4 from HDMI inputs, and an additional 1 from AUX input. These inputs can be seamlessly mixed into the PGM out using either ON/OFF or AFV controls. Users have the flexibility to adjust the input gain, balance, and fade level for each audio input, as well as control the gain of the PGM out. Moreover, the mixer allows for audio monitoring from the selected source through earphone, multiview, and PVW output options, providing comprehensive oversight and control over the audio production process.

Super Source For Unified Video Integration

The Super Source feature allows you to merge two video windows and one background video into a unified source. This single source can then be utilized like any other standard video input, seamlessly integrated into the composition engine. The source of video windows and background can be selected from video inputs, internally generated signals like still image. Additionally, you can easily modify the layout, size, position, and border of each video window, giving you full control over the visual presentation.

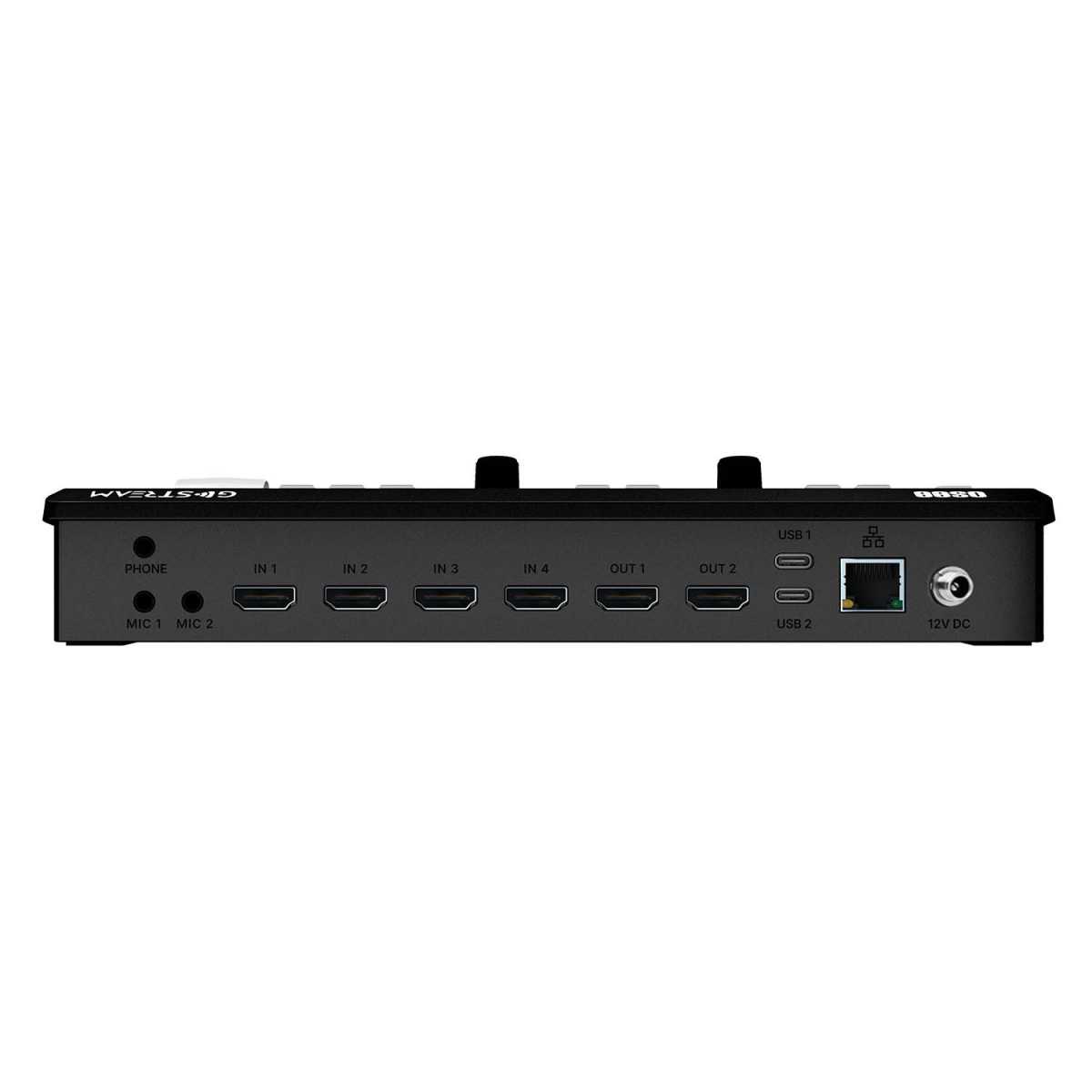

Inputs

• 4x HDMI type A
• AUX Configurable between UVC input USB 2 (USB Type-C 2.0) and SD card video player
• Video Input Formats 720p50/59.94/60, 1080i50/59.94/60, 1080p23.98/24/25/29.97/30/50/59.94/60

Outputs:

• OUT 1 Configurable among IN 1-4, UVC, SD card video player, PVW and PGM, Program Output by default
• OUT 2 Configurable, HDMI Multiview Monitoring Output by default
• USB 1 USB Type-C 2.0 for connecting to OBS, Zoom, Vmix etc. Support up to 1080p30 MJPEG
• Direct Streaming Ethernet Supports 10/100/1000 BaseT and 3 simultaneous destinations for live streaming
• Video Output/Streaming Formats 1080p24/25/30/50/60

Audio Inputs:

• 2 Audio Input MIC 1~2 3.5mm Stereo Mini Jack, support MIC, MIC+power and Line
• 1 Audio Output PHONE 3.5mm Stereo Mini Jack, audio monitoring with adjustable level

Video Effects

• Upstream Key 1
• Downstream Key 1
• Chroma Key 1
• Luma Key 1
• Transition 18 user selectable patterns with versatile modification
• Layer of the ME composition engine 6
• Color Generator 2 on bus and 3 for dedicated effects
• Pattern Generator 2
• PIP 1 Video Source Overlay on video or still Background Source
• Super Source 2 Video Sources Overlay on video or still Background Source
• Still Image Still generator 2 with fill and key
• Still storage 32 with fill and key for each still generator
• Format PNG
