Multicamera live streaming switcher SDI & HDMI

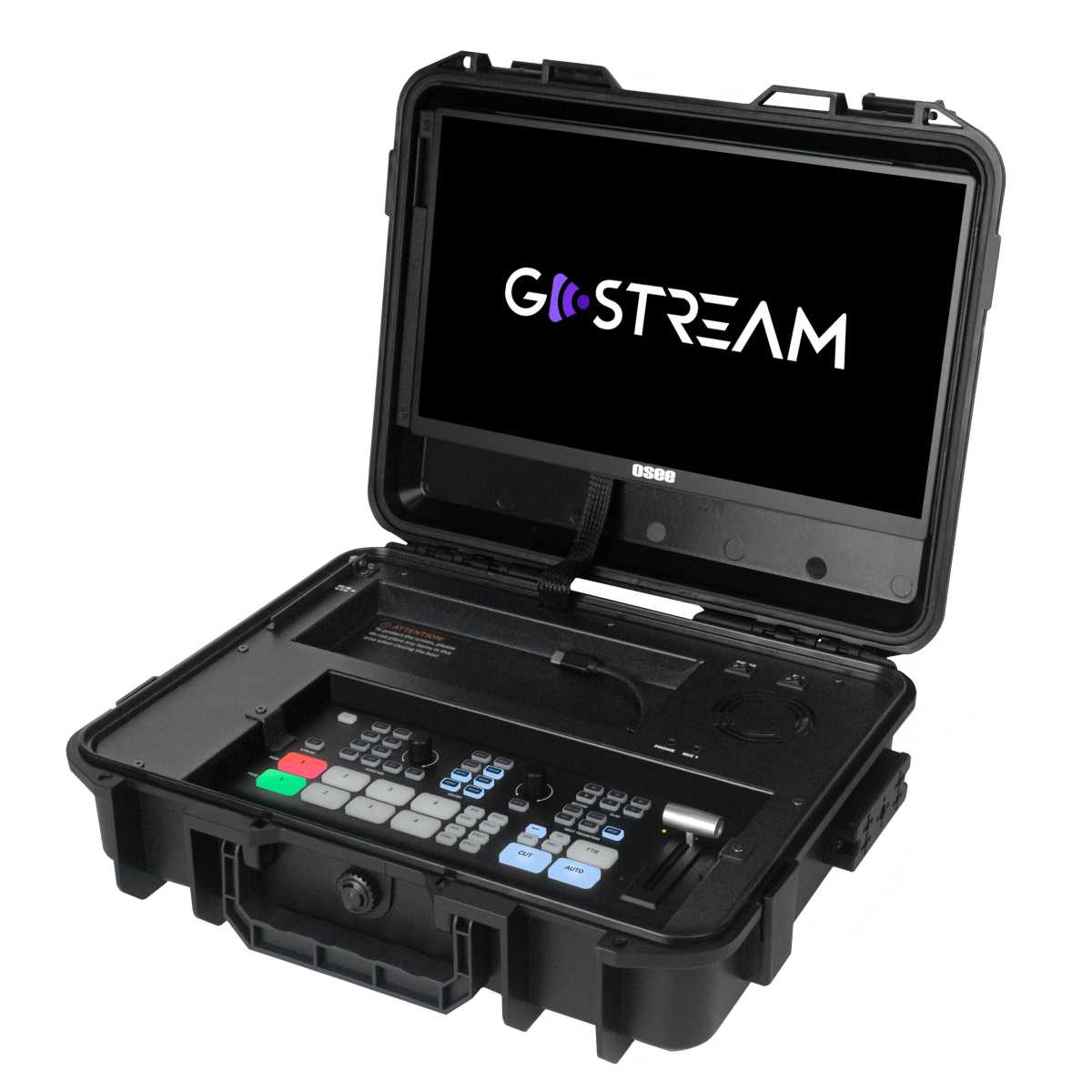

GoStream Duet Kit: All-in-One Live Stream Switcher & Multi-Camera Video Mixer | Professional Production Switcher with Recording & Playback

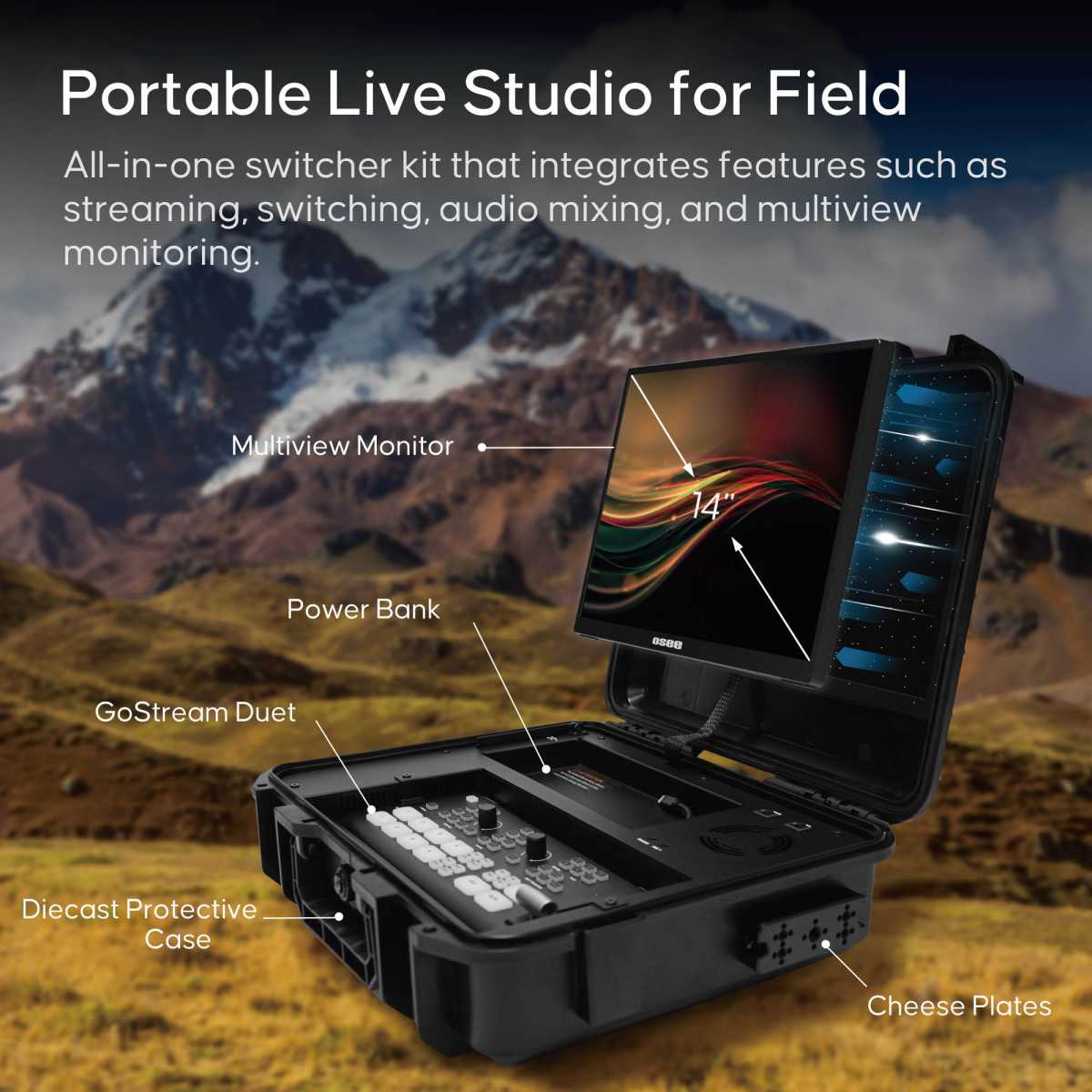

All in One Package: Includes a GoStream Duet switcher, a 14” 1080*1920 screen, a slient fan, 3 Cheese Plates with 1/4” & 3/8” Threads.

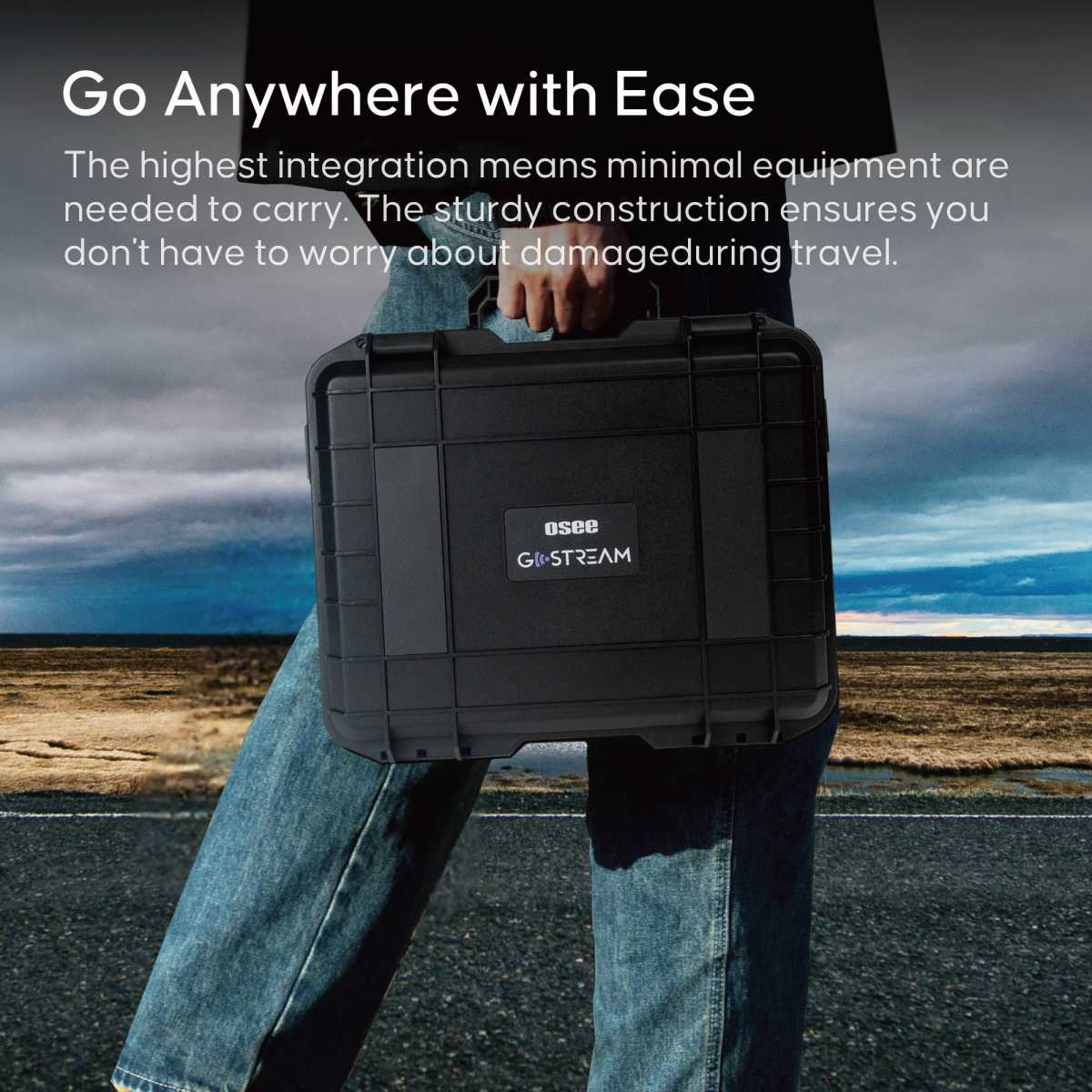

Carry Around Without Burden: GoStream Duet Kit weighs about 5kg. The compact design ensures ultimate portability and durability. Where you go, the mobile live streaming is in your hands.

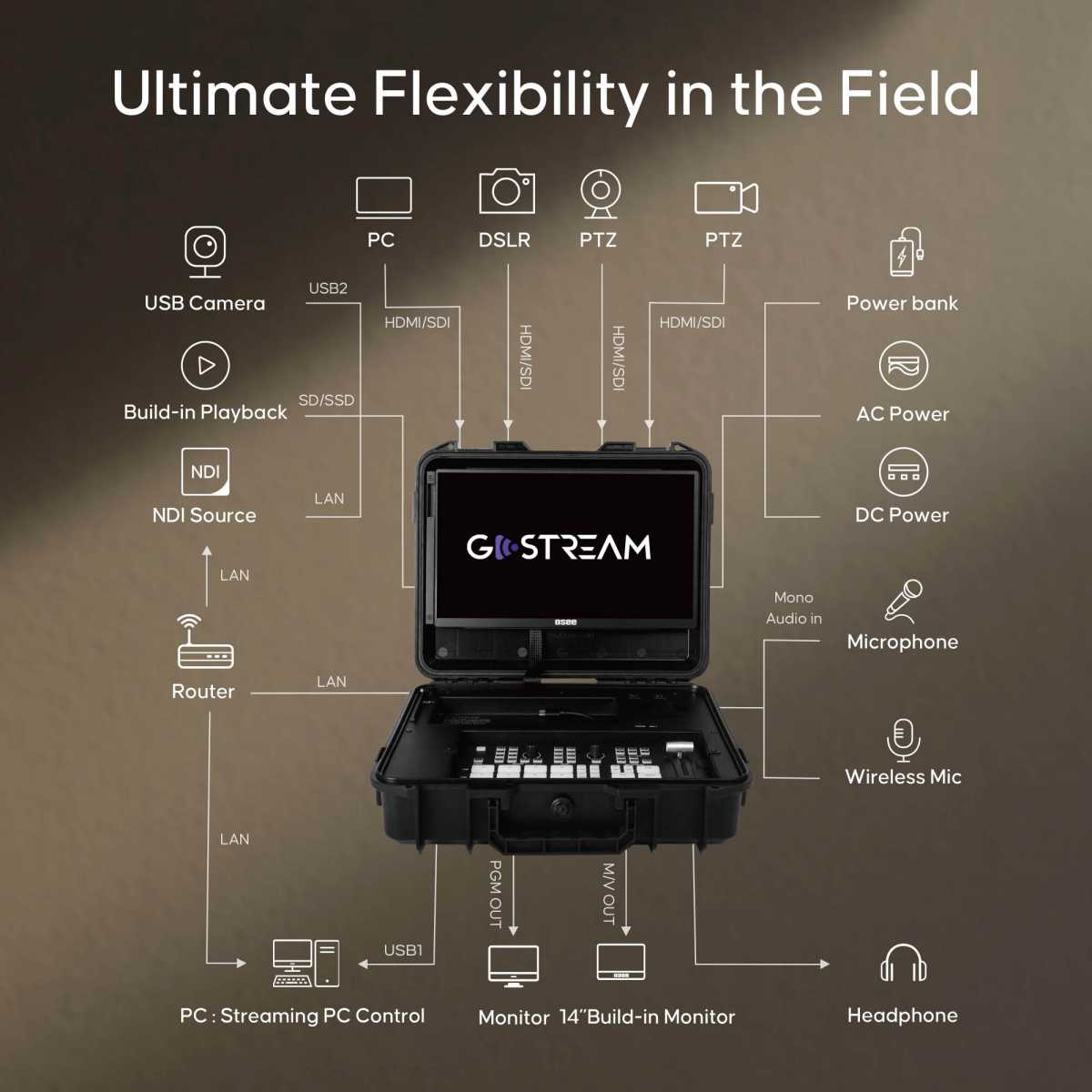

Ultimate and Rich Connection Ports: With 4 HDMI/SDI inputs, 2 HDMI outputs and 2 USB ports, it provides great flexibility to have PGM out while retaining the multiview to monitor. Equipped with 2 USB ports, it conveniently accommodates one for USB camera connectivity and the other for streaming software like OBS, Vmix, and Zoom.

Multiple Power solution: GoStream Duet Kit can be powered by AC IN, DC IN, or a USB power bank. The three power supply modes can be switched seamlessly. And with a built-in USB DC 5V out, it effortlessly powers additional devices like your cameras.

Expandable Cheese Plates: The robust bottom plate securely fastens to a light stand, ensuring stability in any setting. Two side plates open the door to limitless expansions—effortlessly customize your kit with additional equipment.

Tech specs

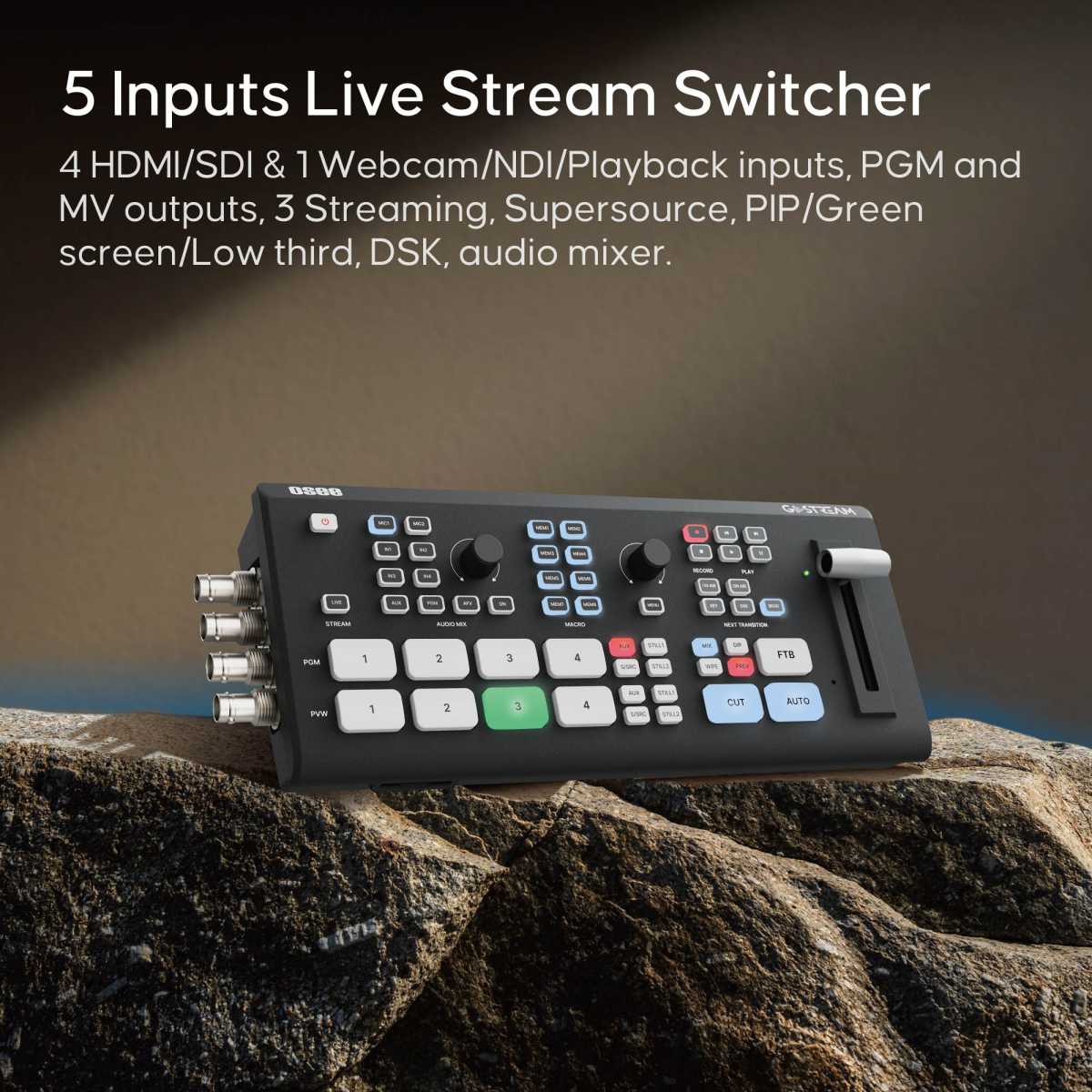

• 5 Video Input Channels

Channel 1-4: HDMI/SDI auto-detection, configurable. Channel 5: NDI, UVC, internal video player selectable

• 3 Video Outputs

HDMI OUT 1-2: Selected from 5 video input channels, multiview, PVW or PGM. USB 1:UVC Outputs up to 1080p30.

• Audio Processing

23.5mm Mic inputs: MIC+power and Line configurable; 1 3.5mm Headphone output, select audio monitoring. Professional Audio Mixer: Fader, Panning, Delay, De-esser, High-pass filter, Compressor, Limiter, Noise Gate, EQ

• Control

Internal menu on multiview, software for PC or MAC, Stream Deck via companion plug-in.

• Direct Streaming

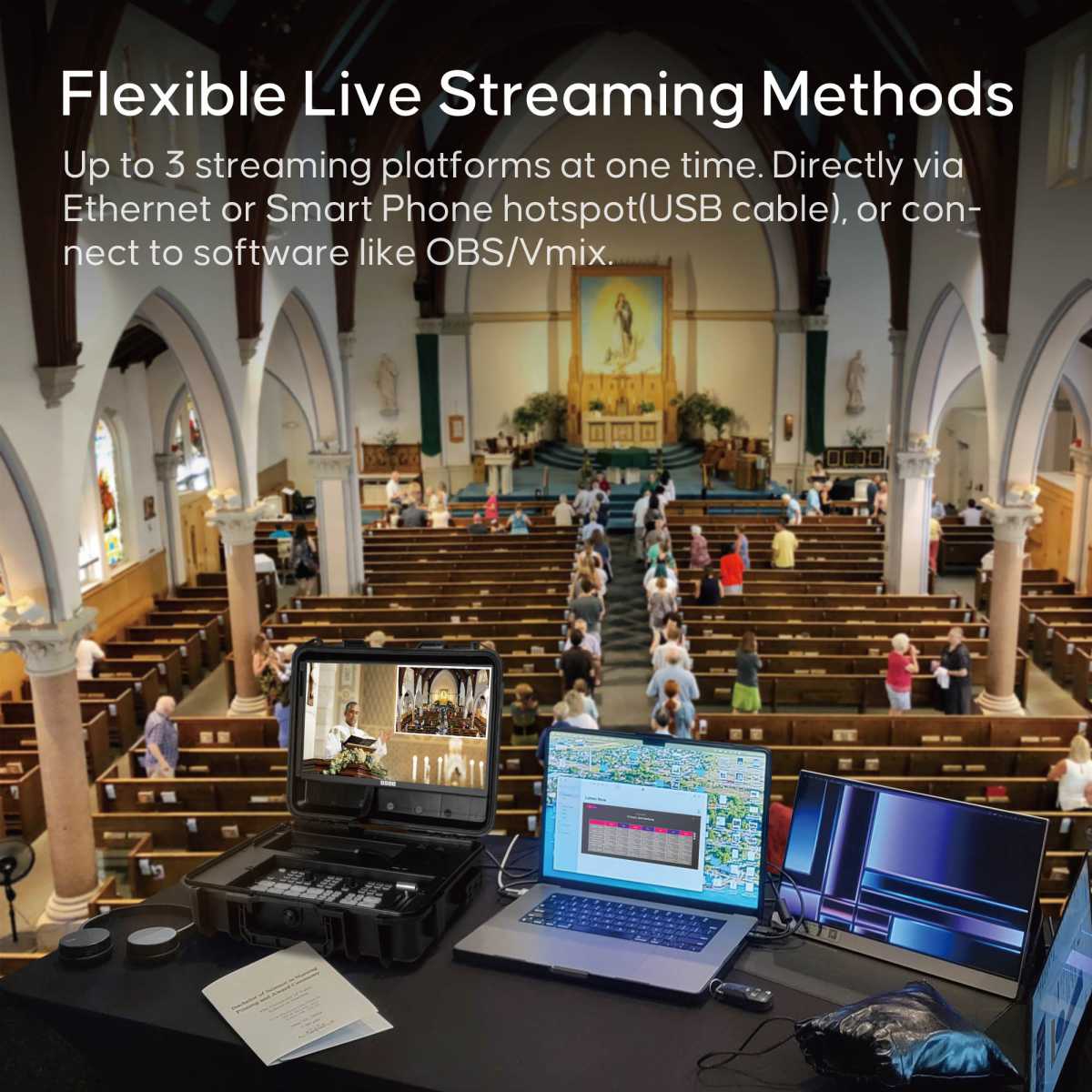

Ethernet: 3 platforms simultaneous streaming, RTMP, up to 10Mb/s.

• Recording and Playback

Internal recording and playback high-quality H.264 up to 70Mb/s while streaming. Internal SD card or external USB 2.0 SSD is supportted

• Input video format

280x720p 50/59.94/60,1920x1080p 23.98/24/25/29.97/30/50/59.94/60, 1920x1080i 50/59.94/60

• Output video format

1920×1080p 23.98/24/25/29.97/30/50/59.94/60.

• Macro

Up to 8 Macros can be accessed via panel, more via software.

• Super Source

2 windows + 1 background, 4 pre-defined layout.

• Other Effects

Upstream Key: 1; DSK: 1; Chroma Key: 1, Luma Key: 1, Transition: 18 patterns; Color Generator: 5; Pattern Generator: 2; PIP: 1; Still Image: 2 generators, 32 storage with key and fill, PNG format.

• Screen

14 inch; 350 nit; 1080×1920.

• Power

AC IN: 100-240V; DC In; 5V USB OUT.

• Body

Item Weight: 4920g; Shipping Weight: 5460g; Dimension: 366 x 300 x 113 mm.

What’s in the box:

• GoStream Duet
• 14″ Monitor
• Case (with 3 cheese plates attached)
• Spare FPC HDMI MINI-A cable
• Spare SD Slot Cable
• Spare D-tap to 2.1 DC Cable
• QSG
• Service Card
